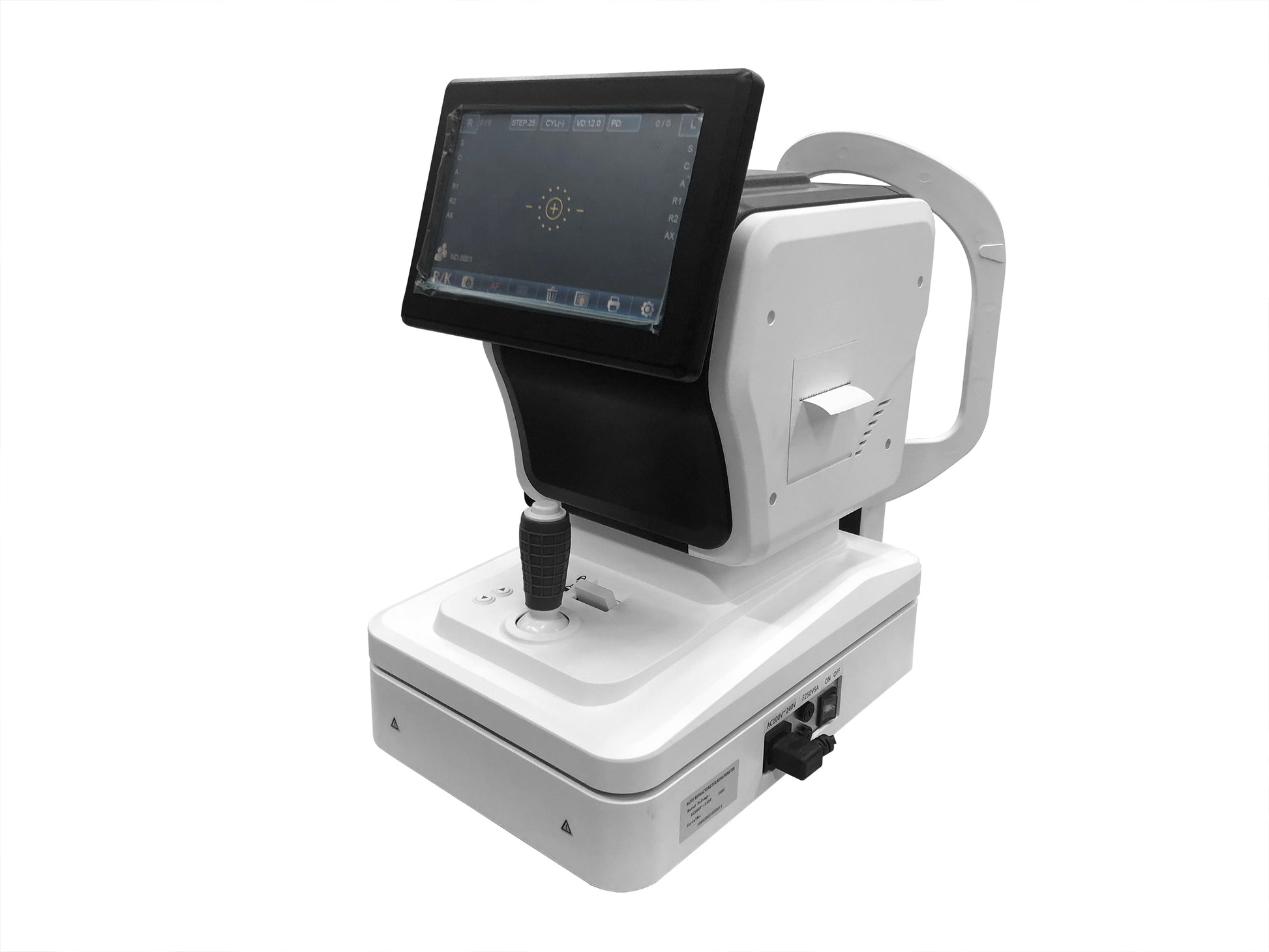

ARK-8500 High-Precision Auto Refractor Keratometer - Advanced Digital Ophthalmic Station
ARK-8500 High-Precision Auto Refractor Keratometer - Advanced Digital Ophthalmic Station
Couldn't load pickup availability
Product Overview
The ARK-8500 represents the next level in automated ophthalmic diagnostics, offering unparalleled precision and speed for comprehensive eye examinations. Designed for high-volume clinics that demand accuracy and reliability, it integrates advanced optical sensing with an AI-assisted tracking system to capture spherical, cylindrical, and corneal curvature data with ease.
Key Technical Advantages
-
Advanced Optical Sensing: Features an upgraded optical path for superior measurement stability, even on patients with small pupils or cataracts.
-
High-Speed Auto-Tracking: The intelligent tracking system assists the practitioner in quickly locating the pupil, ensuring rapid results and improved patient throughput.
-
Precision Keratometry: Provides highly accurate corneal curvature readings, essential for contact lens fitting and premium IOL power calculations.
-
Automatic Fogging Target: The built-in scenic target includes an automated fogging mechanism to minimize patient accommodation, yielding more reliable refractive results.
-
High-Resolution Touchscreen: Equipped with a large, tiltable color LCD touchscreen that provides an intuitive interface and clear visualization of measurement data.
-
Integrated Data Printing: Features a silent, high-speed thermal printer for immediate documentation of diagnostic results.
| Feature | Specification |
| VD Range |
0.0, 12.0, 13.75, 15.0 |
| Spherical Range |
-20.00D ~ +20.00D (VD = 12mm, 0.01, 0.06, 0.12, 0.25 Increments) |
| Cylinder Range |
0.00D ~ ±10.00D (0.06, 0.12, 0.25 Increments) |
| Axis |
1° ~ 180° (1° Increments) |
| Cylinder Symbol |
-, +, ± |
| PD Range |
10 ~ 86mm |
| Minimum Pupil Size |
2.0mm |
| Average Measurement Time |
< 0.5 seconds |
| Pupil Distance |
2.00 – 8.00mm |
| Max Brightness |
< 30uw (Safety Assurance) |
| Curvature Radius |
5.0 ~ 10.0mm (0.01mm Increments) |
| Refractive Power |
33.00D ~ 67.00D (Corneal equivalent diopter 1.3375) |
| Corneal Power |
0.00D ~ -15.00D (0.06D / 0.12D / 0.25D Increments) |
| Data Save |
10 Group Left/Right Eye |
| Target |
Auto Fog |
| Monitor |
9-inch TFT Touch Screen (Flip) |
| Printer |
57mm Width, Auto Cut |
| Power Supply |
AC 100 ~ 250V, 50 / 60Hz, Wide Voltage |
| Net Weight |
22 Kgs |
| Gross Weight |
26.5 Kgs |
| Packing Dimensions |
(L) 680mm x (W) 400mm x (H) 640mm |
