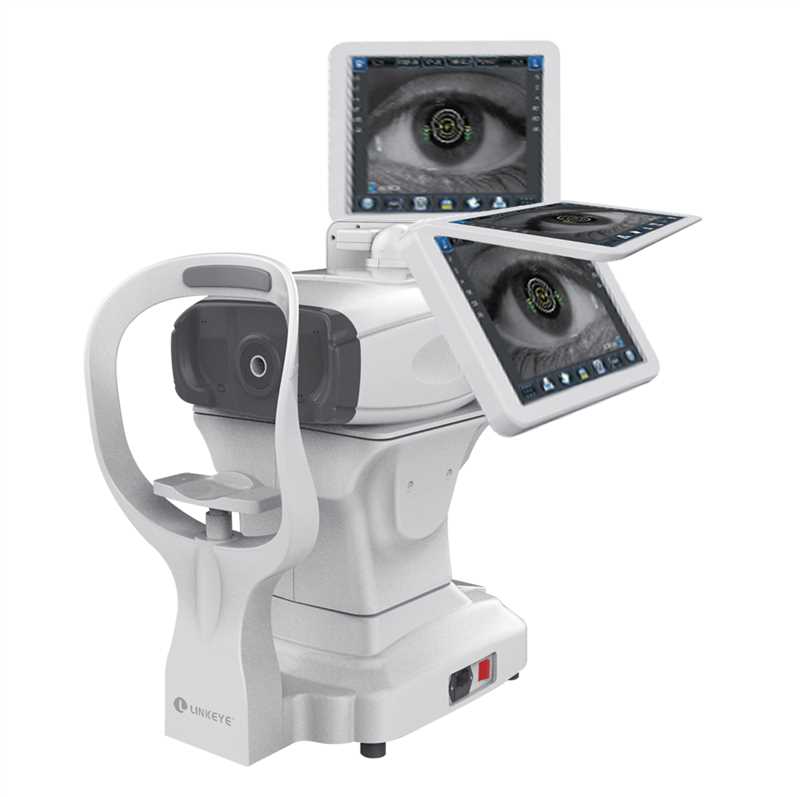

ARK-980 High-Precision Auto Refractor Keratometer - SHARP 10.4" LCD Touch Screen

ARK-980 High-Precision Auto Refractor Keratometer - SHARP 10.4" LCD Touch Screen

$2,600.00 USD
$2,600.00 USD
Sale Sold out

Product Overview

The ARK-980 is a premier-grade auto refractor keratometer utilizing Hartman imaging analysis and high-speed image acquisition for exceptionally stable and accurate diagnostic results. Equipped with a massive SHARP 10.4” adjustable touch screen, it provides practitioners with an elite user experience and superior visualization.

Key Technical Advantages

  • SHARP 10.4" TFT LCD Display: Features a large, adjustable touch screen that can be freely rotated (up, down, left, right) for ergonomic operation.

  • Advanced Hartman Technology: Leverages new optical designs and high-speed image analysis to ensure clear human eye image effects and accurate measurement results.

  • Full Automation: Supports Auto Focus, auto measurement, and an automatic up/down function for the chin rest, maximizing clinical efficiency.

  • Extreme Measurement Range: Capable of measuring a sphere range from -25.00D to +25.00D and pupil diameters as small as 1.0mm.

  • Seamless Data Transfer: Standard equipped with RS232 with optional Bluetooth, VGA, and WIFI for modern clinic integration.

  • Professional Built-in Printer: Features a 57mm thermal printer that automatically cuts paper, keeping your diagnostic records organized.

Feature Specification
Monitor

SHARP 10.4” TFT LCD touch screen (Angle of view adjustable)

Sphere Range

-25.00 ~ +25.00D (0.01/0.06/0.12/0.25D step) (VD=12mm)

Cylinder Form

-, +, ±

Axis

1° ~ 180° (1° step)

Vertex Distance (VD)

0.0, 12.0, 13.75, 15.0

Pupil Distance (PD)

10 – 85mm

Min. Pupil Diameter

∅ 1.0mm (measurable)

Radius of Curvature

5.0 – 10.0mm (0.01mm unit)

Corneal Power

33.00D – 67.00D (Corneal equivalent refractive power 1.3375)

Corneal Astigmatism

0.00 – 15.00d (0.06D/0.12D/0.25D Unit)

Data Storing

10 measured values for each left and right eye

Printer

Built-in 57mm thermal printer with auto paper-cutting

Electrical

AC 100 – 240V, 50/60HZ

Net Weight (N.W.)

24kgs

Gross Weight (G.W.)

26.5kgs

Packing Size

451mm (L) x 309mm (W) x 502mm (H)
