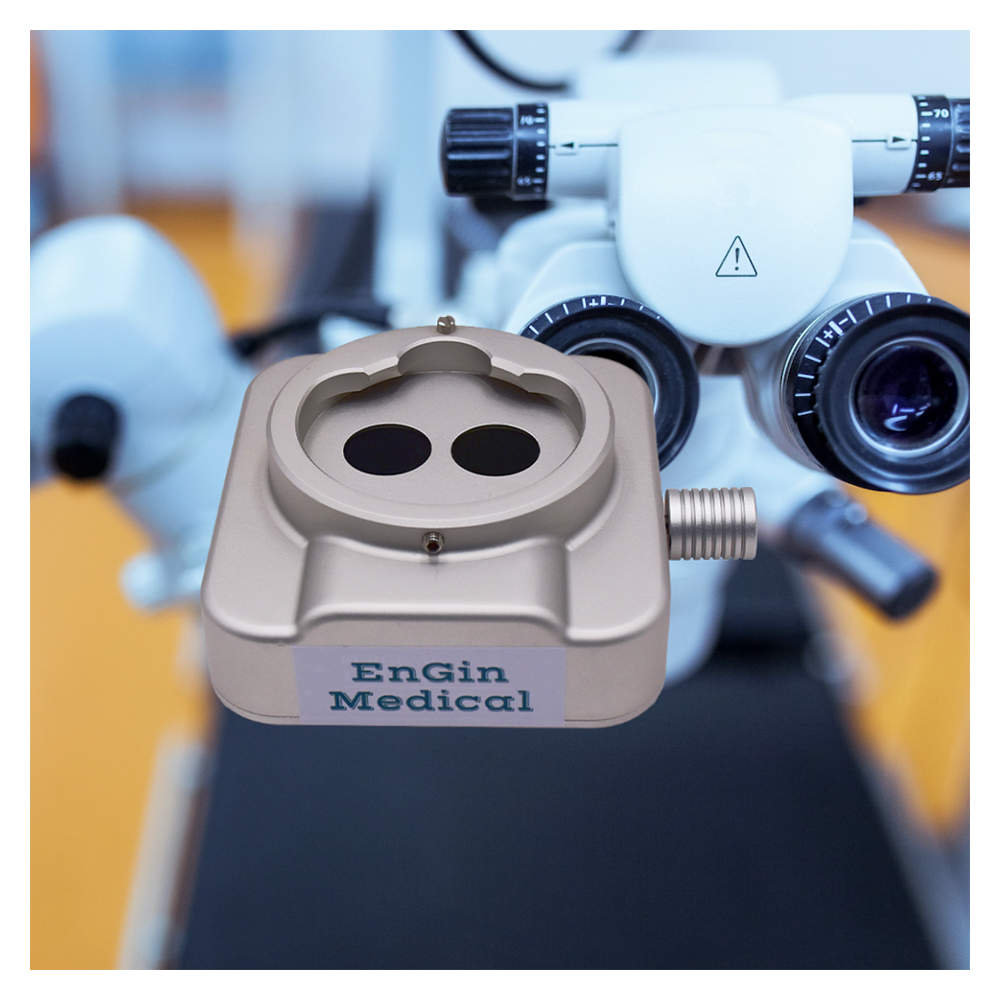

Surgical Image Inverter for Ophthalmic Microscope

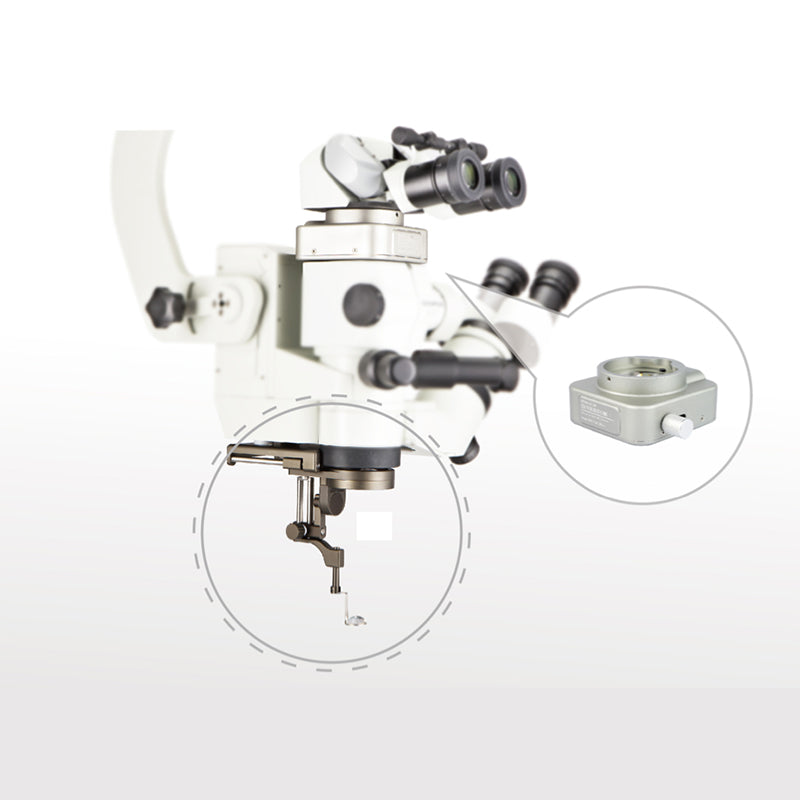

The Surgical Image Inverter is an optical accessory designed for vitreoretinal and retinal surgery. It is installed in the optical path of an ophthalmic surgical microscope to provide an upright image during surgery.

During vitreoretinal procedures, the microscope may produce an inverted image through the optical system. The image inverter corrects the image orientation, allowing the surgeon to view the surgical field in a more natural orientation and perform delicate retinal procedures with greater visual convenience.

Designed for Vitreoretinal Surgery

This surgical image inverter is designed for use with ophthalmic operating microscopes and can be used as part of a vitreoretinal surgery setup together with a BIOM or other non-contact wide-angle viewing systems.

It is suitable for hospitals, ophthalmic surgery centers, microscope manufacturers, medical distributors, and ophthalmic equipment service companies.

Wide Microscope Compatibility

The inverter is available for a wide range of ophthalmic surgical microscope models, including:

ZEISS

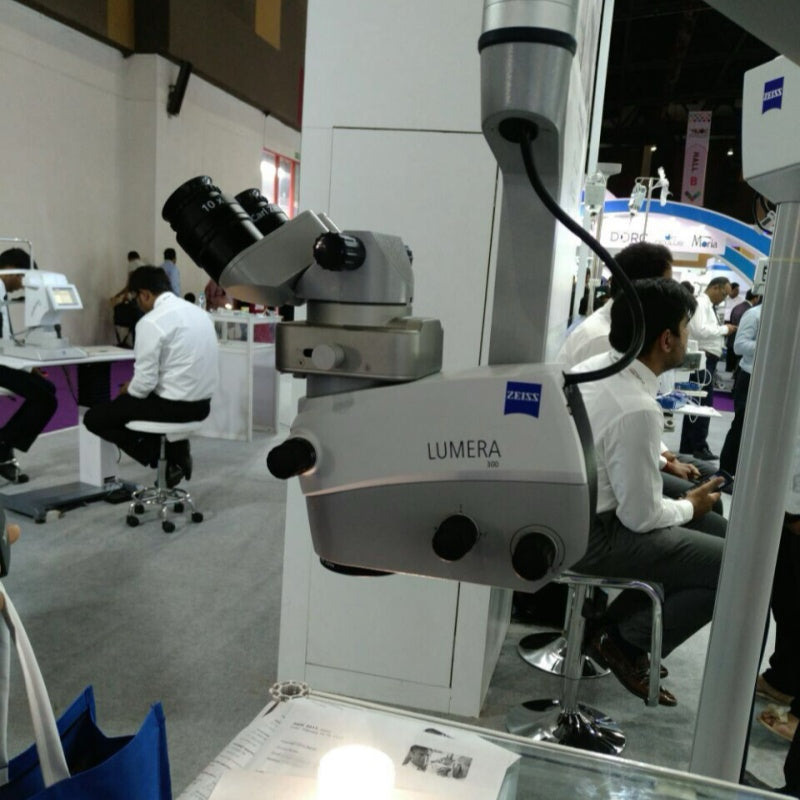

• Lumera

• Lumera T

• MDI

• MDO

• MDU

• OPMI 1

• OPMI 6 / OPMI 6S

• OPMI 6-CFC

• OPMI 6-SFC / OPMI 6-SFR

• OPMI 6-CH

• OPMI Pico

• OPMI Vano

• OPMI VISU 150 / 200 / 210

LEICA

• M500

• M501

• M520

• M620

• M650

• M651

• M655

• M690

• M695

• M820

• M822

• M840

• M841

• M844

Other Compatible Microscope Brands

• TAKAGI OM-18

• TOPCON OMS 800 Series

• TOPCON OMS 90

• TOPCON OMS 70

• ALCON LuxOR

• INAMI L-0980A

• PRESCOTT OMNI-FLEX

• HUVITZ HOM-700

Please contact us with your exact microscope model before ordering. Compatibility may depend on the microscope configuration and mounting interface.

Key Features

• 180° image inversion for vitreoretinal surgery

• Designed for ophthalmic surgical microscopes

• Optical glass lens system

• Optical transmittance: >95%

• Clear optical path for surgical observation

• Compact and lightweight design

• Approx. 0.8 kg

• Suitable for use with BIOM systems

• Available for multiple major ophthalmic microscope brands

• Suitable for replacement, retrofit and new surgical microscope configurations

Optical Performance

The high-transmittance optical system is designed to maintain a bright and clear surgical image while correcting the image orientation.

Optical transmittance: >95%
Lens material: Optical glass
Lens color: Clear
Coating: UV coating
Weight: Approx. 0.8 kg
Application: Ophthalmology / Vitreoretinal Surgery

Typical Applications

The Surgical Image Inverter can be used for:

• Vitreoretinal surgery

• Retinal surgery

• Vitrectomy procedures

• Ophthalmic operating microscope systems

• BIOM-assisted vitreoretinal surgery

• Surgical microscope retrofit projects

• Replacement of existing microscope image inverters

• Ophthalmic equipment distributors and service companies

Why Choose Engin Medical?

Engin Medical supplies ophthalmic optical accessories and surgical microscope components for international medical distributors, hospitals and ophthalmic equipment companies.

We can provide compatibility confirmation based on your microscope model before shipment.

For projects involving older or discontinued microscope models, please send us:

1. Microscope brand and model
2. Photo of the microscope mounting interface
3. Photo of your existing image inverter, if available

Our technical team can check the configuration before you place an order.

Product Specifications

Important Compatibility Notice

This product is a microscope optical accessory, not a universal plug-and-play accessory for every surgical microscope.

Please contact us before ordering to confirm compatibility with your microscope model.

We can help verify the required configuration based on your microscope model and mounting interface.

Contact Engin Medical for compatibility confirmation, quotation and delivery information.
