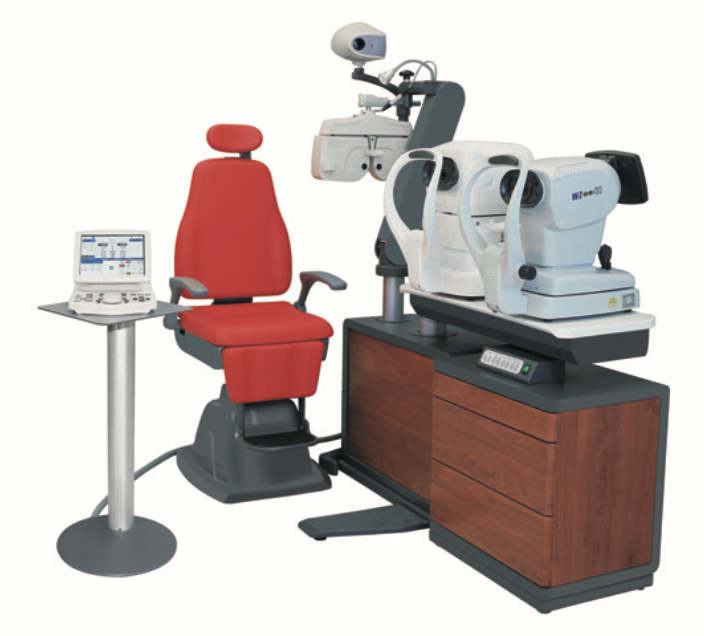

YDL-930 Ophthalmic Combination Unit - Motorized Eye Exam Chair and Table System with Sliding Desktop

YDL-930: The Ultimate All-in-One Ophthalmic Examination System

Elevate Your Practice to Executive Standards. The YDL-930 is a premier refraction workstation designed to provide a seamless, high-end experience for both the practitioner and the patient. This fully integrated system eliminates the need for patients to move between instruments, significantly speeding up the exam process while maintaining a luxury clinic aesthetic.

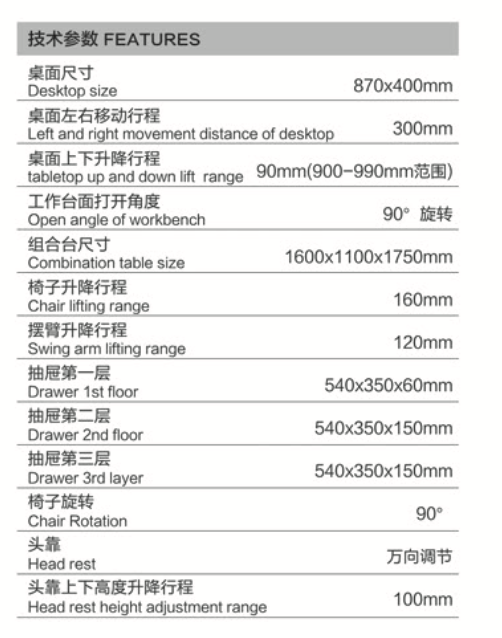

Advanced Engineering Features:

• Intelligent Sliding Desktop: The motorized tabletop (870x400mm) slides 300mm horizontally, allowing you to switch between two primary instruments (e.g., Slit Lamp and Auto Refractor) with the touch of a button.

• Fully Motorized Patient Comfort: The luxury chair features electric height adjustment, rotation, and a reclining backrest. Combined with a universal adjustable headrest, it ensures perfect alignment for patients of all sizes.

• Versatile Phoropter Arm: The heavy-duty swing arm provides 120mm of vertical travel and extensive front-to-back/side-to-side movement for precise refraction placement.

• Master Control Center: A centralized switch panel allows the doctor to control the chair, table height, and instrument power from a single ergonomic position.

• Massive 3-Tier Storage: The premium wooden-finish cabinet features three deep drawers (540x350mm) to store trial lens sets, diagnostic tools, and professional accessories.
