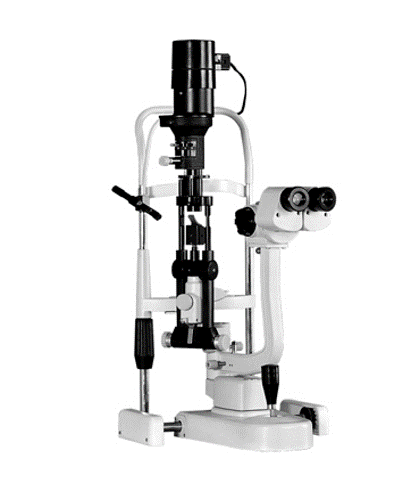

YZ5F1 Professional Ophthalmic Slit Lamp - 5-Step Magnification, Galilean Type

YZ5F1 Professional Ophthalmic Slit Lamp - 5-Step Magnification, Galilean Type

$2,500.00 USD
$2,500.00 USD
Sale Sold out

The YZ5F1 is a flagship Galilean-type slit lamp designed for high-precision ophthalmic diagnostics. It is renowned in the industry for its extra-large field of view, exceptional depth of focus, and 5-step magnification versatility. Whether for routine examinations or complex clinical diagnostics, the YZ5F1 delivers the clarity and reliability that ophthalmic professionals demand.

Microscope Type

Galilean stereoscopic microscope

Objective Magnification

Five Steps by drum rotation

Eyepiece

12.5x

Magnifications (Field of View)

6x(φ33mm), 10x(φ22.5mm), 16x(φ14mm), 25x(φ8.8mm), 40x (φ5.5mm)

Pupil Distance

55mm~75mm

Diopter Adjustment

-5D~+3D

Slit Width

0mm~9mm adjustable(Slit is round when the silt width is 9mm)

Slit Height

1mm~8mm adjustable

Slit Angle

0°-180°adjustable

Slit Inclination

5°, 10°, 15°, 20°,four steps adjustable

Diameter of Light Spot

φ9mm, φ8mm, φ5mm, φ3mm, φ2mm, φ1mm, φ0.2mm

Filter

Heat Absorption, Grey, Redfree, Cobalt Blue

Illumination Bulb

12V/30W Halogen Bulb

Input Voltage

AC220V±22 V, AC110V±11 V

Electrical Safety Standard

Executive Standard: IEC 601-1,Class I,Type B

Packing Volume

720mm*495mm*480mm for slit lamp and another similar for table.

Total Weight

24kg for slit lamp and 25kgs for motorized table.

Optional Accessories

Applanation Tonometer, Measuring Eye Piece ,Trihedron Lens, Gonioscope, Funduscope, Aspheric Lens, Retinal Lens, Teaching Tube, beamsplitter, camera adapter
